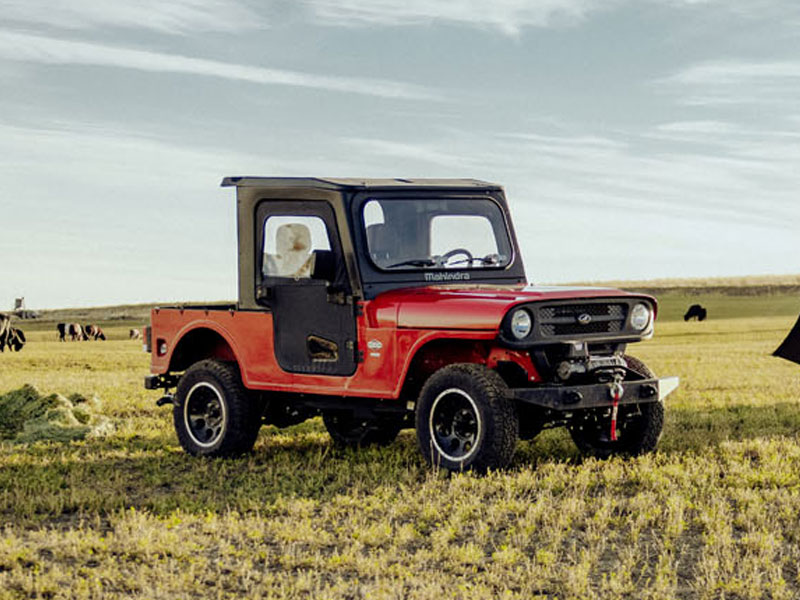

Roxor Side-by-side HD All-Weather Model
BASE MODEL ONLY STARTING MSRP $30,599*
Shop Now Download Spec Sheet
Turbo Diesel 2.7L Engine
Torque 144 LB-FT
Towing Capacity 3500 LB
Payload Capacity 1185 LB
- Steel body
- Boxed steel frame
- Heavy-duty transmission, no belts
- Horsepower: 55
- Displacement: 2730cc
- Ground clearance: 9”
- Alternator: 90A
- Fuel capacity: 16 gal
- Warranty: 2-year limited
Roxor HD All-Weather – Conquer Any Job, Rain or Shine
No matter the season, the Roxor HD All-Weather is ready to tackle your toughest tasks. With a rugged steel body, heavy-duty boxed steel frame, and a reliable Mahindra turbo-diesel engine, this side-by-side is built to perform in any condition. Equipped with an enclosed cabin, it offers superior protection from rain, wind, and dust, keeping you comfortable while you work hard.
From rainy ranch days in Victoria, TX, to dusty trails across South Texas, the Roxor HD All-Weather is your year-round workhorse.
Why Choose the Roxor HD All-Weather?
- Fully enclosed cabin for all-weather comfort and protection.
- Durable steel construction for long-lasting performance.
- Turbo-diesel engine for reliable power and efficiency.
- Built to handle heavy loads, tough terrain, and any condition.
At Atzenhoffer's Velocity Roxor in Victoria, TX, we’re proud to serve hardworking farmers, ranchers, and adventurers across Cuero, Edna, Goliad, and Port Lavaca. The Roxor HD All-Weather is built for those who don’t stop, no matter the forecast.
Visit us today to experience the Roxor HD All-Weather – where performance meets protection. Schedule your test drive now!
View All Specs
DIMENSIONS & CAPABILITIES
- WHEELBASE 96” / 244 cm
- BASE CURB WEIGHT 1 3415 lb / 1549 kg
- LENGTH 144” / 366 cm
- WIDTH 60.7″ / 154 cm
- WIDTH (w/ Side Mirrors closed) 64″ / 163 cm
- HEIGHT 77”/ 196 cm
- GROUND CLEARANCE 9” / 22.86 cm
- FUEL CAPACITY 16 gal / 60.5 L
- PAYLOAD CAPACITY 2 1185 lb / 538 kg
- GVWR 4600 lb / 2087 kg
- TOWING CAPACITY 3500 lb / 1588 kg @ 15 mph
- SEATING CAPACITY 2
ENGINE
- TYPE Four-stroke, Turbocharged, Direct-Injection, Water Cooled Diesel Engine
- CYLINDERS 4
- DISPLACEMENT 2730cc (2.7L / 165 in³)
- BORE & STROKE 88.9 X 110.0 mm
- ENGINE 55 hp @ 2300 rpm (Max 2700 rpm)
- TORQUE 144 ft-lb @ 1400 rpm
- COMPRESSION RATIO 18.7 : 1
- COOLING SYSTEM Liquid
- FUEL SYSTEM Mahindra Common Rail Diesel (mCRD)
ENGINE
- TYPE Turbo Diesel m2DiCR
- CYLINDERS 4 – 4 Stroke Compression Ignition
- DISPLACEMENT 2490cc (2.5L / 152 in³)
- BORE & STROKE 88.9 X 101.6 mm
- POWER 62 HP @ 3200 rpm
- TORQUE 144 lb-ft @ 1400-2200 rpm
- COMPRESSION RATIO 18.6 : 1
- COOLING SYSTEM Liquid
- FUEL SYSTEM Direct Injection
DRIVETRAIN
- TRANSMISSION 5-speed manual
- TRANSFER CASE 2-speed manual with 2.41:1
- DRIVELINE 2WD / 4WD
- FRONT AXLE Full Floating w/5.38 : 1 Gear Ratio
- REAR AXLE Semi Floating w/5.38 : 1 Gear Ratio
CHASSIS & SUSPENSION
- CHASSIS TYPE Boxed Steel Frame
- FRONT SUSPENSION HD Leaf Spring w/ Shock Absorbers & Stabilizer Bar
- REAR SUSPENSION HD Leaf Spring w/ Shock Absorbers
- SHOCK ABSORBERS Double Acting Hydraulic
- TIRES 235 / 70R16; All-Terrain
- WHEELS 16 X 7″ Polished & Painted Aluminum
SAFETY
- PROTECTION Roll-Over Protection System (ROPS)
- SEAT BELTS (2) 3-point
- BRAKES Hydraulic Power
- PARKING BRAKE Mechanical
- FRONT BRAKE 11” Disc / 27.94 cm
- REAR BRAKE 11” Drum / 27.94 cm
PERFORMANCE
- MAX SPEED 52 mph / 84 kmph
- MAX TOWING SPEED 15 mph / 24 kmph
- MAX FLAT TOWING SPEED 3 55 mph / 88 kmph
CONVENIENCES
- STEERING Hydraulic Assist
- STORAGE (2) lockable underseat boxes
- INTERIOR FLOOR ROXLINER™
- CARGO BED ROXLINER™
- CARGO AREA TIE DOWNS 8 Side Rail, 2 Floor
- CAB ENCLOSURE Composite
- CLIMATE CONTROL (Heat & AC) Standard
- WINDSHIELD Polycarbonate
- WIPERS Dual
- WINCH (with Mounting Plate) WARN 8,000 Lb.
- BUMPER Powdered-coated HD
ELECTRICAL
- BATTERY 12V AGM
- ALTERNATOR 90A
- POWER OUTLET 12-volt
- INSTRUMENTATION Digital Cluster
- HEADLIGHTS Halogen
- TAILLIGHTS Low-Profile LED
- ROXPOWER TM Standard
OTHER INFO
- FINAL ASSEMBLY USA
- WARRANTY 2-Year Limited Warranty
FOOT NOTES
- Base curb weight as configured from factory with diesel fuel and fluids. No dealer accessories included.
- Varies based on accessories and configuration.
- Flat towing only with aftermarket locking hub kit.
- See Operator’s Guide for complete details.
- No DEF
*Price does not include freight, parts installation / labor, dealer prep / labor, special financing cost & terms which may affect final price from dealer. Subject to availability. Offers may vary by region. Individual dealer prices and document fees may vary. See participating dealer for details. Not available in California or Canada.
